My First Design-Build Comission, Nearly Complete!

Sorry its been a while since I last posted- I've been sick and/or out of town since Thursday, and only got back into some real work today.

Ok, so I have already mentioned this project before, but if you think about it- this cat ladder would be my first design-build commission- before all of you start lining up to buy futons, of course. I got back on it today, starting with some supports- more drilling into ornery hardwood, and today I broke 3 drill bits over the course of an hour. A quick trip to the Depot, and I got 8 new ones to back these up (they're like a buck a piece).

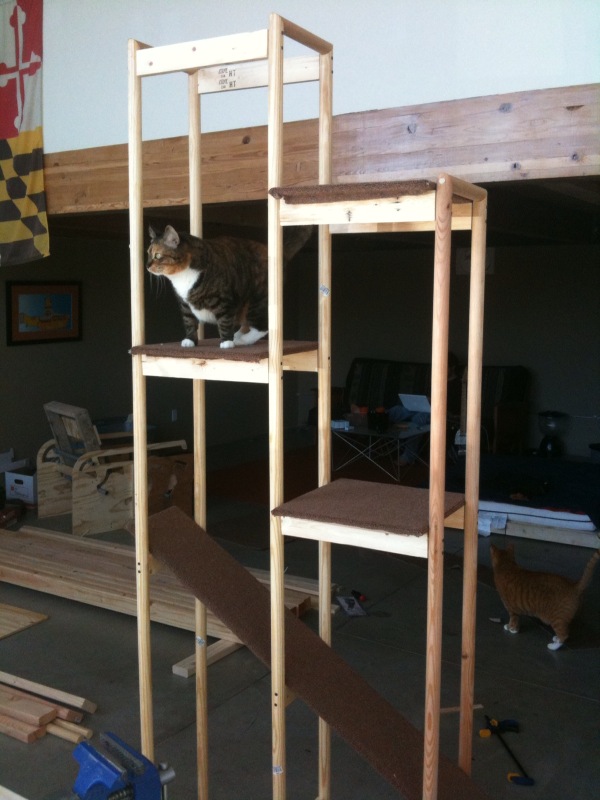

A couple hours later and I had this structure in all its glory- held together with 59 screws and one broken-off and firmly lodged drill bit- but right now just a skeleton waiting for its skin.



The next step was to make some platforms. These are just 15" square planks with a couple of rails attached to them with finishing nails, then I did my first ever upholstering job with my staple gun. Not bad, if I do say so myself.



There are a few changes and additions that need to be made, but this is the basic structure of it. I had Jackie test it out and she got down fine, and I put some food up top and Amos was able to climb it. Another complete success!





Too bad with the amount I spent on drill bits and moulding material I will definitely be taking a loss on this. No matter- its nearly done and I'm proud of it. And I don't ever have to work with this lousy material again. The last steps are some sanding, cleaning, and attaching a base. Which I will do tomorrow. As for right now, I must prepare for a Memorial Day party! Thanks for reading.

Furniture Design: The Cat Who Blagged an Interweb

Sunday night, a neighbor of mine voiced an issue- it seems her loft is currently only accessible by ladder, which her cats cannot climb, and so she asked if there was any builder-type person in the building who wouldn't mind building her a device so that her cats might descend more safely. I volunteered, made some measurements, and today I finally set aside some time to work on it.

The design is simple- three support posts, with staggered platforms spaced about 15" apart, about what we considered an appropriate easy height for a cat to jump. I thought, "hey, I've got those wood full rounds I couldn't use before, maybe I can make those the basis of the structure- even better because there are no sharp corners with which to injure cats.

I tested a corner joint- just made a small one- I planned to hold the whole thing together with these pins and some wood glue- as seen below. It would be simple, clean, and elegant- and best of all it would be better than the client had expected.




Easy, right? No. It turns out that handrail stock is SOME OF THE MOST ORNERY MATERIAL IN THE WORLD. First of all, it turns out they are made of some sort of hard wood, so my spade bits were going almost nowhere, and they're round- and anyone who has ever tried drilling a round item can tell you it can, at times, drive one to madness. So with everything not drilling and rolling around, I was forced to put together a jig, which, I'll admit, looks like something out of Saw VIII.



Surprisingly, the device excellently centered the holes, and I'm pretty proud of how awesome it works and how hodge-podge it looks. Unfortunately, the material was still too hard for my jig to get any more than a half inch, so I scrapped the jig idea, and went with simple wood screws and wood glue. Which in itself was a non-gluing drill-resistant fiasco, but at least, by the end, I had the main structure together.



I'll work on this into tonight- but it just goes to show knowing your materials can make a huge difference- and this is one material I will never use again- unless I am specifically installing a handrail.

Furniture Design: Tenon Meets Mortise

This weeks 'field trip' takes us to Economy Lumber in Oakland, just a short jog away from our place at the Cotton Mill. There is hardware store there- but this one actually seems to have tools in it. A look around here makes one realize how small a Home Depot would be if you got rid of all the windows and lighting fixtures and dishwashers- you know all the prefab sh*t that people who actually want hardware almost never need.



We were looking for some specialty cuts- furniture sized pieces are not standard lumber cuts- usually the wood you can find is sized for decking it seems. We venture out into the piles and piles of wood to find something like a 3x3 (which in lumber actually means 2 1/2x 2 1/2) in a type of wood commonly used in furniture. The closest we could find was some 3x6s- a rare cut in lumber- in Douglas Fir, and they rip them in half for us lengthwise, for a fee. These will be the leg stock for the futon.



After some fun trying to tie a 4'x8' sheet of chip board to the roof of Jake's car with lousy twine in the rain, we returned to the Studio/Apartment and I began focusing on skill-building.

I want the futon to be held together with mortise and tenon joints, which hold only with glue, so that there won't be just a ton of screw-heads tarnishing the appearance. Of course, I've never made a mortise and tenon joint before so today was the time to give it a try. Yes, this boy, born and raised on power tools, bought himself his very first set of chisels.



I'm actually pretty pleased with how well it came out. Unfortunately the mortise is all ragged, and it didn't close all the way, but Martin gave me some pointers on technique. So I'll do some more tomorrow to continue practicing. I glued up the joint as well, to learn a bit about tolerances in these kind of joints.



I know four months of focus isn't enough time to master the art of woodworking. I know by the time a craftsman can be called a master he has made thousands of mortise and tenon joints. But I'm going to push myself to see what I can accomplish. In this time I hope to finish the Futon, a Dining Table, a Kitchen Island, and a Bed Frame, all in finish quality. At the end, I may ask Martin to grade my work- should be fun.
